The ledger is the horizontal member used to connect the standards in both the longitudinal and transversal directions.
#CUPLOCK SYSTEM SCAFFOLDING DESIGN SERIES#

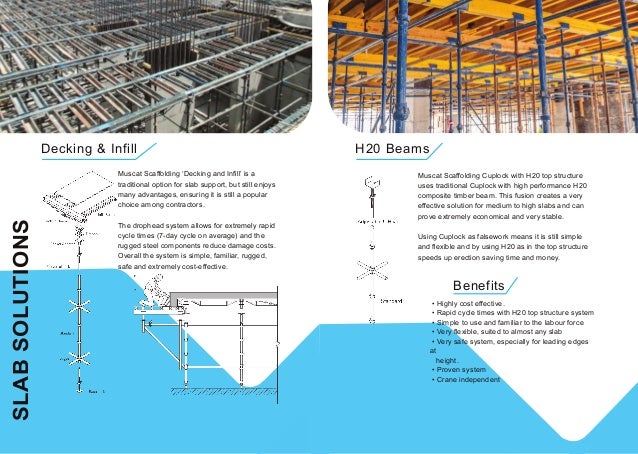

It is made from high grade steel tube with outer diameter of 48.3 mm and thickness of 3.2 mm.Ī series of bottom cups are welded at nominal 500 mm centers and free top cup to ensure providing a safe connection at any direction for the horizontal ledger attachment.Ĭup-lock vertical standards vary from 0.5 m to 3.0 m. The standard is the vertical member of cup lock system. Several accessories ensure the adaptability of the system to a wide variety of applications. A hammer is the only tool required for erection and dismantling of the system. In addition, no loose fittings are required. This formwork slab support can be used in a wide variety of applications from light to heavy duty scaffolding and shoring for buildings and other civil engineering work. Our employees are qualified and experience and our scaffold designs will suit the simplest of house wraps to the most difficult.The Cuplock system is a complete system that provides access scaffolding and formwork slab support. We focus on ensuring that you receive the best service at the best price without safety being compromised. They’re low maintenance and designed to reduce occurrences of accidents.Īvail your cuplock scaffolding from C&N Scaffolding Hire Pty Ltd. The time-tested design and the safety accessories that are used in erecting cuplock scaffolding meet the safety requirements of the various statutory bodies. It also requires less storage space and offers long lasting support compared to other types of scaffolding.Ĭuplock scaffolds may be lightweight, but have high capacity for supporting heavy loads. Aside from that, this type of scaffolding is easy to transport as the material used is single pipes. Thanks to the bar accessories, loading and unloading becomes easy. The firm clamping action of the topmost cup secures the joint, which makes it a reliable and high-performance scaffolding structure. DESIGN PARAMETERS MATERIAL 1) MAO Cuplock system scaffolding BS 1139. Cuplock scaffolding also works well in projects that involve construction of overpass and railway viaducts.Ĭuplock scaffolds come with only four horizontals that can be quickly fastened at one time. Subject: Design of external Access Scaffolding Storage Tank P.O. It is also used in demolition and maintenance projects for both, straight and curved structures. This type of system scaffolding is widely used in the construction of houses, chimneys, tunnels, dams, and bridges. It is a fully galvanised multi-purpose steel scaffold system suitable for providing general access and supporting vertical loads. It is durable enough to be used in construction and it works with a variety of support structures. Thanks to the versatility of cuplock scaffolding, it is best suited for access or framework support. This means you can do your job much faster. All it needs is a locking cup at every node point on the standards so that the ends include up to four members in a single locking action. There are no tiny parts that can be damaged or lost, which adds to the convenience of using cuplock scaffolds. If you want a scaffolding design with repeated patterns, then cuplocks will have to be placed at every 500mm to 1,000mm for optimum strength and support, and to create effective and standardised systems.Ĭuplock scaffolding is easy to erect and can stand without needing nuts and bolts or wedges to fasten the horizontals. This type of scaffolding is used to a great extent because of its ability to sustain heavy loads. Below is an overview of the main uses of cuplock scaffolding.Ĭreates Effective and Standardised SystemsĬuplock scaffolding is made from galvanized steel. Some of its popular types include ringlock scaffolding, cuplock scaffolding, kwikstage scaffolding, haki frame scaffolding and shoring props. System scaffolding is composed of pre-engineered horizontal and vertical parts that are joined together in a certain order that makes it easy for users to use it to ascend and descend structures. Understanding the Main Uses of Cuplock Scaffolding January 6, 2020
